Aluminium Honeycomb Panels
Explore the Versatility of Aluminium Honeycomb Panels
Viva introduces aluminium honeycomb panels featuring a core honeycomb board with a thin aluminium sheet as the outer layer.
Inspired by natural honeycomb structures, this hexagonal core design enhances stability, stiffness, and lightweight properties.
Unlike traditional aluminium composite panels, these panels eliminate the thermoplastic core, adding to their unique characteristics.

Timely Delivery & Composition of Honeycomb Panels
Compared to other materials of the same volume, Viva’s aluminium honeycomb panels boast a distinctive structure and exceptional strength.
Manufactured in Umbergaon, our honeycomb boards meet national and international standards.
With 12 state-of-the-art Korean machines, we ensure innovation and superior panel quality.

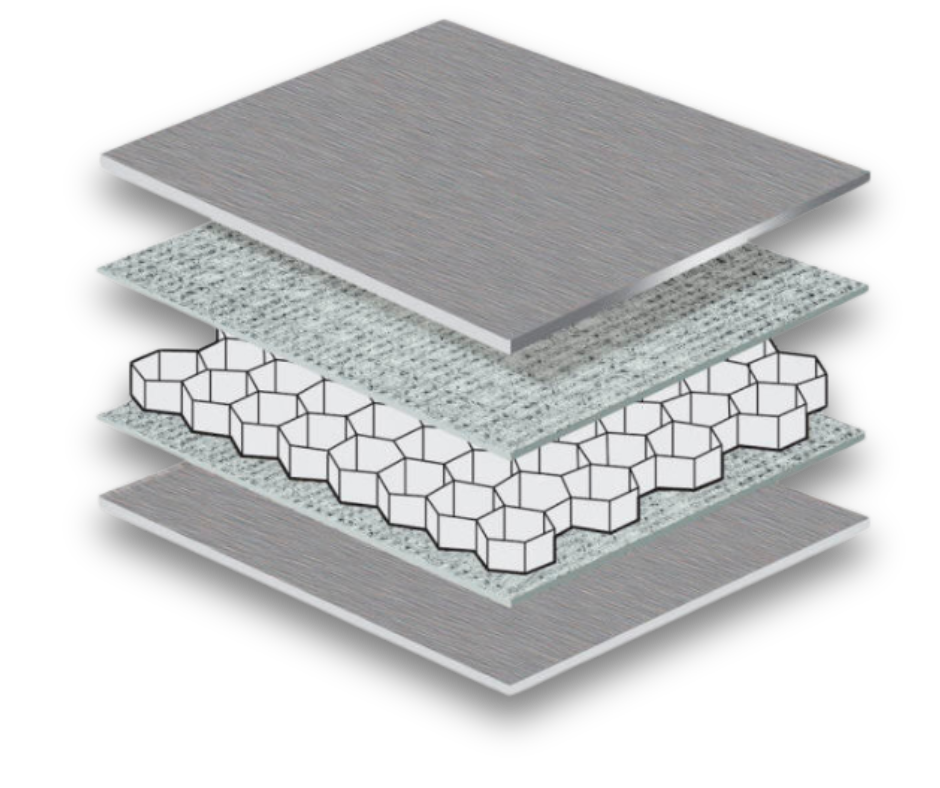

Composition:
🔹 Aluminium Alloy: AA3003/AA3105/AA5005/AA3105
🔹 Aluminium Skin Thickness: 0.03mm – 0.08mm
🔹 Honeycomb Grid Thickness: 6mm, 7.5mm, 20mm
🔹 Overall Panel Thickness: 12mm, 20mm
🔹 Panel Lengths: 2440mm, 3050mm, 3660mm
Why Choose Honeycomb Aluminium Panels?
Viva’s honeycomb aluminium panels provide superior strength, resilience, and an aesthetically pleasing finish.
Key advantages include:
☑️ Self-cleaning surfaces with extensive shade options
☑️ 15-year warranty
☑️ Excellent thermal and sound insulation
☑️ Affordable yet durable metal composite panels
The trusted choice for high-quality aluminium composite panels, ACP panels, and honeycomb aluminium panels.
PHYSICAL PROPERTIES | DETAILS |
---|---|
Cover Sheet Alloy | 3003/3105/5005 |
Thickness | 12mm/25mm |
Honeycomb Core Thickness | 23.8mm/11mm/10.8mm |
Cell Size | 9.5mm/12.7mm |
Foil Thickness | 0.05mm/0.07mm |
Core Alloy | 3003/5005/3105 |
Total Panel Thickness | 12mm/25mm |
Panel Widths | 1220mm / 1250mm / 1500mm |
Panel Lengths | 2000mm - 6000mm |
TECHNICAL PROPERTIES | DETAILS |
---|---|
Alloy (Top & Bottom Sheets) | AA3003/AA3105/AA5005/AA3105 |
Elasticity Modulus (N/mm2) | 70,000 |
Tensile Strength (N/mm2) | Min. 115 |
Proof Stress (N/mm2) | Min. 70 |
Elongation A50 | Min. 2% |
Coating | PVDF/FEVE |
Top Skin Thickness | 0.7mm / 0.5mm |
Bottom Skin Thickness | 0.5mm |
Core Alloy | AA3003 / AA5005 |
Compressive Strength (N/mm2) | 1.22 |
Density (Kg/m3) | 45 |
Application Areas
Viva’s honeycomb sheets are used in:
Ceilings
Facades
Metro Coaches
Railway Stations
Airport
Ideal for both interior and exterior applications.
Benefits of Aluminium Honeycomb Panels

FIRE RESISTANT
- Non-combustible and non-melting
- Fire rating: FR Grade A2+
- Hexagonal core structure prevents rapid fire spread

100% Recyclable:
- Aluminium alloy composition allows complete recycling

Lightweight
- Hollow core with hexagonal structure reduces overall weight
- Ideal for aerospace, metro coaches, and theatres

Ease of Installation
- Lightweight panels can be easily installed using rivets and nuts

High Efficacy
- I-beam structural integrity ensures high durability
- Resists high-impact stress
